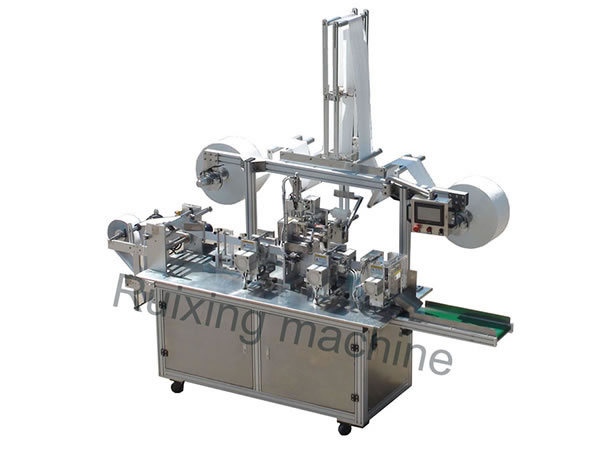

QX-250 Wet Wipe Machine (Four Side Sealing Machine)

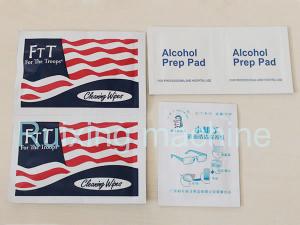

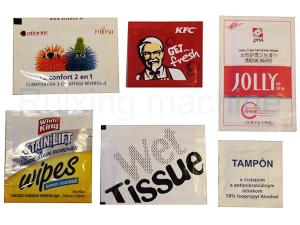

The QX-250 wet wipe machine is a newly developed, fully automatic packaging machinery, designed to produce small pouch wet wipes with all four sides sealed. The end products made by the wet-wipe converting equipment can be used in medical, aviation, catering and other industries. They can come in either a single pack, or double packs connected to each other. In the pack, the small wipes are folded longitudinally several times, and folded crosswise one or two times. A discharging chute with a counting function can be customized, ensuring convenient packaging.

Production Process
Non-woven or wet strength paper and packaging film feeding → longitudinal folding → crosswise folding → cutting → wetting →bag making → packaging →sealing →cutting off → finished product

Specifications
Model: QX-250
Wet wipe unfolding size (L×W): (100-200mm) × (100-200mm)
Folding size (L×W): (25-100mm) × 35mm
Folding methods: Longitudinal fold: 8 times; Crosswise fold: 1-2 times, maximum 32 layers
Packaging size (L×W): (50-120mm) × (50-80mm)
Applicable material: Roll type spunlaced, hot wind and needle punched non-woven materials (diameter≤1000mm; breadth:200-250mm)
Control system: PLC
Power: Variable frequency motor
Parameter setting: Color touch screen
Production speed: 60-90 wipes/minute
Compressed air: Customers provide for themselves
Carton size: It depends on actual conditions
Power supply: 220V, 50Hz, 2.5Kw
Weight: about 800kg

Features
1. The wet wipe machine uses a Japanese PLC controller and electrical components, and German color mark sensors, which increases the stability and durability.
2. The four-sided seal wet wipe machinery comes with a large color touch screen through which all parameters can be set, making operation simple and user-friendly.
3. Pneumatic parts on the wet wipe machine are all from famous brands, ensuring the production efficiency and service life.
4. A packaging film feeding system is equipped with an automatic guiding device.
5. The heating package sealing is controlled, enabling the temperature stability.
6. The wet wipe machine is easy to operate, and changing the product size and sealing molds are fast and easy.
7. The housing and other major parts are made of 304# stainless steel, ensuring the robust structure and elegant appearance.
