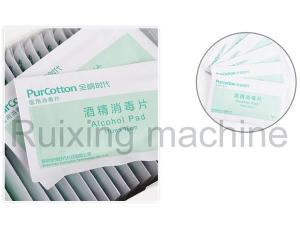

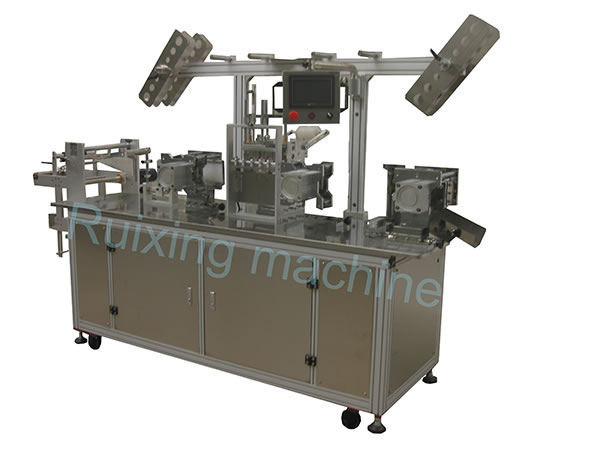

In order to meet the requirements in the wet wipe industry for product diversity and automation, Ruixing developed the QX-280A alcohol pad making machine. The alcohol swab machine is specially designed to produce both standard and non-standard four sided sealed pouch alcohol pads, iodine pads, BZK pads and more. The product appearance comes in a single pack, doubles packs connected to each other, or 4 joint packs.
Production Process
Non-woven or wet strength paper and packaging film feeding → crosswise folding → cutting → alcohol addition → packaging → sealing → cutting → finished products
Specifications
Model: QX-280A
Product size (L×W): (30-80mm) × (25-50mm) (Other sizes can be customized)
Folding size (L×W): (25-100mm) × 35mm
Folding patterns: fold in half (customizable)
Package size (L×W): Single package (30-100mm) × (30-65mm)
Control system: PLC
Power: Variable frequency motor
Parameter setting: Color touch screen
Production speed: 120-150 wipes/minute
Compressed air: Customers provide for themselves
Power supply: 220V, 50Hz, 2.5Kw
Weight: about 800kg
Features
1. The alcohol pads making machine uses internationally known brand name PLC controllers, electrical components and color mark sensors in order to ensure the equipment stability and durability.
2. A color touch screen is designed to be easy to operate.
3. The wet wipe machine is equipped with an automatic web guiding system for packaging film.
4. This alcohol pad making machine uses a color mark sensor automatic tracking system.
5. The heat package sealing comes in an intelligent module control, ensuring the temperature stability. The temperature can then be controlled using a touch screen.
6. It is fast and easy to change the product specifications and sealing molds.
7. A single pack, duplex pack and quadruple jointed packs can be produced on this machine.
Applications

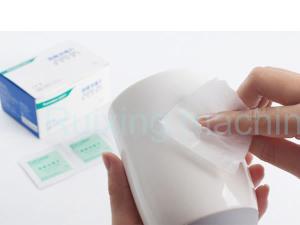

Along with alcohol pads, this machine is ideal for packaging different disinfectant wipes in various industries, including medicine, hygienic, wiping cloths and more.
