QX-400 Bag Making Machine (For Nonwoven Filter Bag)

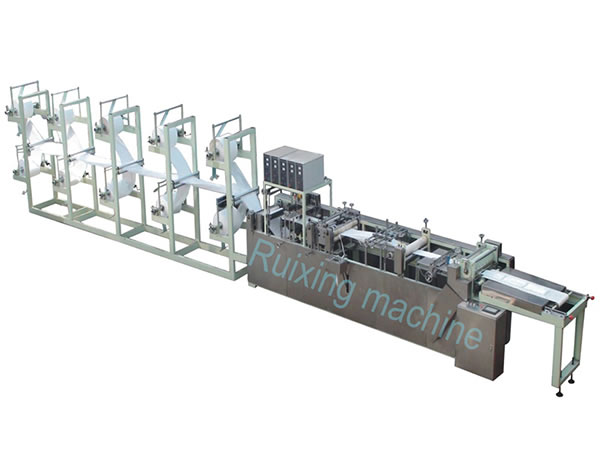

The QX-400 bag machine is a multi-functional filter bag machine that is great for making non-woven filter bags with a notching mouth, binding pocket mouth and folded edges. The non-woven bag forming machine comes with a servo control system, an automatic balance material transporting system, and a bag folding former. It can successively complete raw material feeding, mouth binding, bag forming, cutting and end product output.

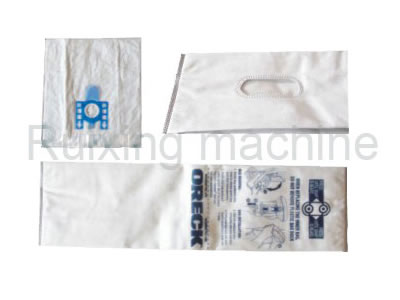

Due to the stable formation and neat, smooth and burr-free edge cuttings with a high bonding strength, this bag machine is ideal for making dust collection bags and non-woven filter bags.

Specifications
Model: QX-400
Folding device: Stainless steel bag edge forming unit
Embossing device: Customizable embossing figure
Bonding system: High grade ultrasonic bonding
Product size: ≤500mm, customizable

Features
1. The bag machine comes with a continuous variable speed changing device, and an automatic adjustable mouth binding device.
2. It is equipped with 5 groups of double raw materials feeders on the tail end. These feeding devices feature a mechanical tension device, hand operation guidance unit and a fast feeding wrench.
3. The non-woven machinery is designed with a large power ultrasonic bonding system.
4. This bag machine’s conveying guide rollers are all high quality, hard anodizing aluminum rollers with a diameter of 75mm.
5. All molds are made from special materials, and the embossing figures are engraved using a special technology.
6. The bag machine will automatically stop when there are no materials.
7. Horizontal moving widths on the ultrasonic bonding molds and the molds for mouth binding and edge sealing are adjusted using a hand operated screw rod, and an action grip is used to fix the position.
